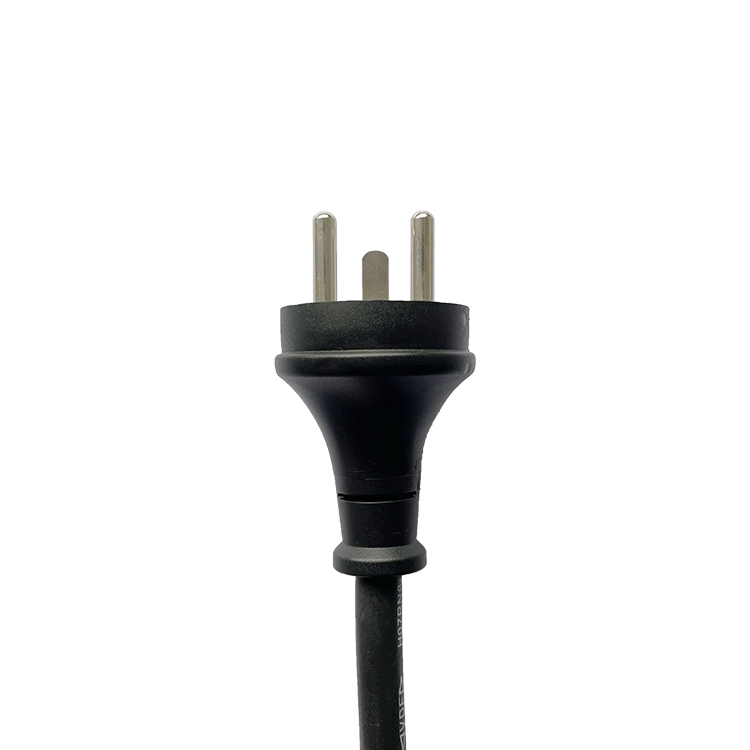

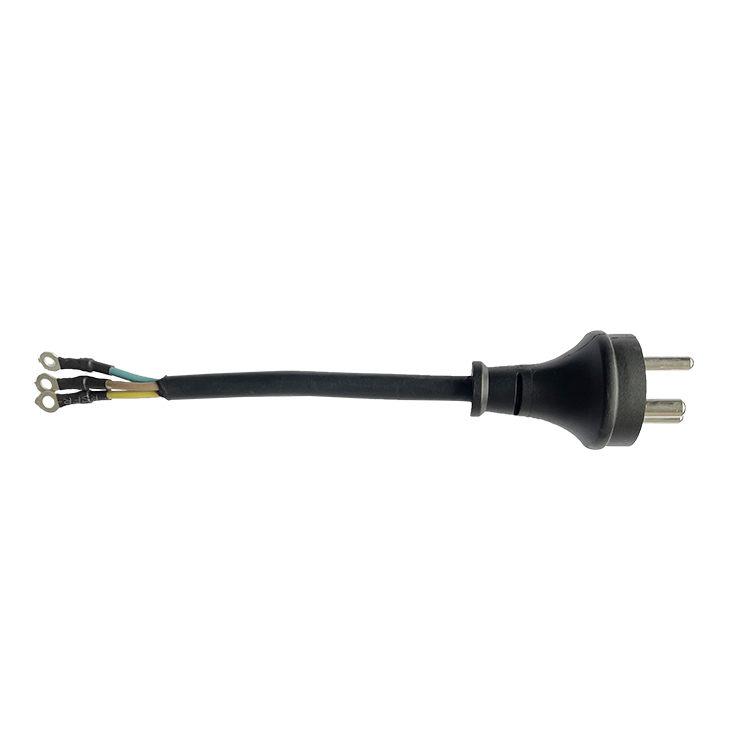

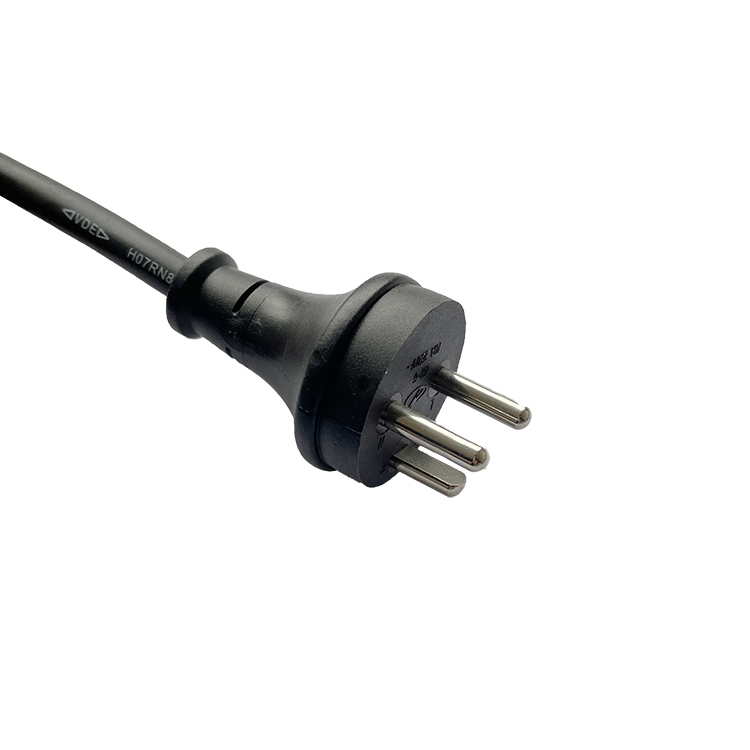

10A 250V DEMKO Approval Denmark Plug Type K Power Cord with H05VV-F 3G0.75mm² PVC Cable
- Male Plug Type : Type K
- Female end Type : Stripped or Customized
- Rated Current & Voltage : 10A 250V
- Rated Temperature: 70℃
- Conductor：Stranded pure bare copper
- Insulation ： PVC or Rubber
- Jacket : PVC or Rubber
- RoHS & Reach : Approval
- Certificate : IEC, DEMKO
Description
10A 250V DEMKO Approval Denmark Plug Type K Power Cord with H05VV-F 3G0.75mm² PVC Cable
• Used in: Denmark and Greenland
• The earth pin which is 5 mm shorter than line and neutral pins, is a typical feature of Danish plugs,However, when a plug is inserted in a Danish earthed socket it is still the earth pin that makes contact first, because the socket earth clip is positioned 12 mm ahead of the line and neutral connectors.
• The Type K plug has two round pins as well as a grounding pin. It is similar to Type F, the difference being that Type F has grounding clips instead of a grounding pin. Type C plugs are perfectly compatible with Type F sockets. Type E plugs and sockets are also used in Denmark.
• Certificate : Comply with IEC and Danish standards and have approved by TUV
| Plug Type | Standard | Applicable Cord | Certificate | |
| Plug Type K 10A 250V |
DS 60884-2-D1:2017 IEC 60884-1:2002+A1+A2 |
H03VV-F 3G0.75 mm² H05VV-F 3G0.75-1.5 mm² H05RN-F 3G0.75-1.0 mm² H07RN-F 3G1.0-1.5 mm² H07RN8-F 3G1.0-1.5 mm² |
TUV | |
