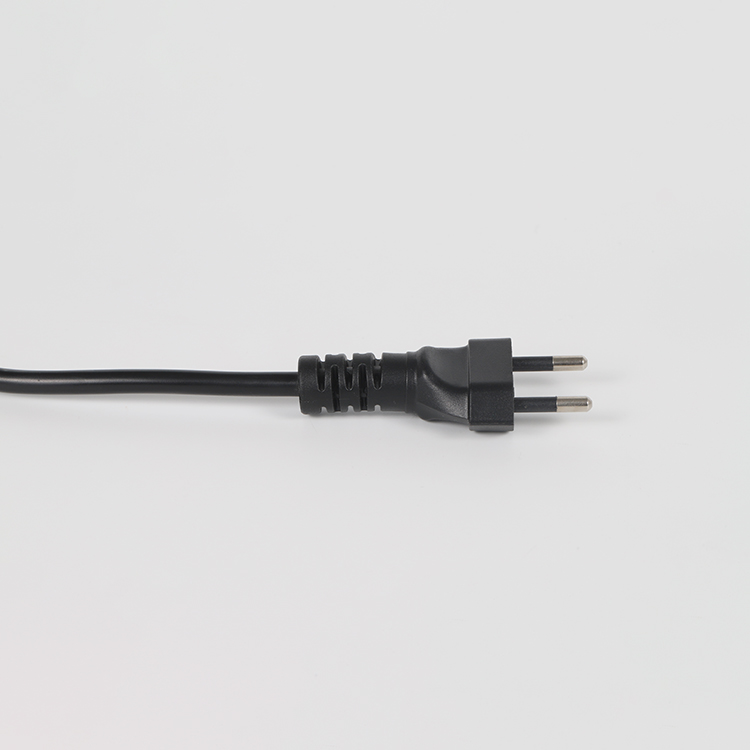

10A 250V INMETRO Approval Brazil 2 Pin Plug Power Cord match to H05RN-F 2×1.0mm² Rubber Cable
- Male Plug Type : Type C
- Female end Type : Stripped or Customized
- Rated Current & Voltage : 10A 250V
- Rated Temperature: 70℃
- Conductor：Stranded pure bare copper
- Insulation ： PVC or Rubber
- Jacket : PVC or Rubber
- RoHS & Reach : Approval
- Certificate : TUV,INMETRO
Description
10A 250V INMETRO Approval Brazil 2 Pin Plug Power Cord match to H05RN-F 2×1.0mm² Rubber Cable
• Used in: Brazil,South Africa
• Brazil is one of the few countries that uses two types of voltage. While most states use 127 V, some of them use 220 V. It is therefore important to find out the local voltage before plugging in your appliance
• There are two variations of the Type N plug, one rated at 10 amps, and one at 20 amps. The 10 amp version has two round pins that are 4 mm thick, and a grounding pin. The 20 amp version, used for heavier appliances, has two round pins 4.8 mm in diameter, and a grounding pin. The Type N socket was designed to work with Type C plugs as well.
• Certificate : TUV,INMETRO
| Plug Type | Standard | Applicable Flexible Cord | Certificate | |
| Plug type C 10A 250V |
ABNT NBR NM 60884-1 NBR 14136 |
H03VVH2-F 2×0.75 mm² H03VV-F 2×0.75 mm² H05VVH2-F 2×0.75-1.0 mm² H05VV-F 2×0.75-1.0 mm² H05RN-F 2×0.75-1.0 mm² H07RN-F 2×1.0 mm² |
TUV INMETRO |
|
