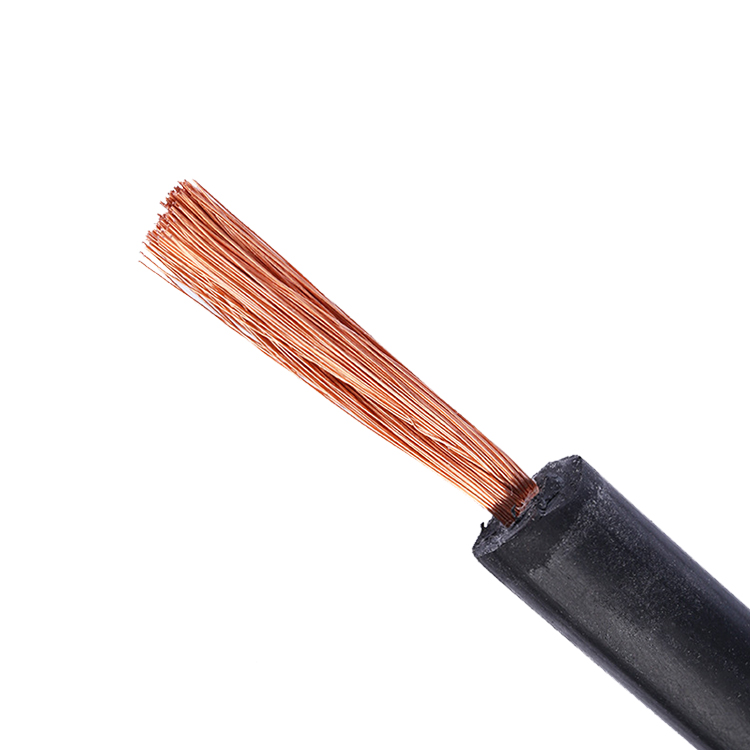

60245 IEC 81 (YH) Welding Cable
- Cable Type : 60245 IEC 81 (YH)
- Standard : GB 5013；IEC 60245
- Conductor：Bare or Tinned Copper Stranded
- Insulation ： CPE
- RoHS & Reach : Approval
- Certificate : CCC
Description
60245 IEC 81 (YH) Welding Cable
• Standard : GB 5013；IEC 60245
• CCC certified Welding cable
• Passed IEC 60332-1 vertical flame test
| Conductor | Insulation | Max Resistance (Ω/km, 20°C, DC) |
|||
| mm² | No./mm | Nom.Dia.(mm) | Nom.Thick.(mm) | Nom.Dia.(mm) | |
| 16 | 504/0.2 | 5.60 | 2.00 | 9.7 | 1.19 |
| 25 | 791/0.2 | 6.98 | 2.00 | 11.1 | 0.78 |
| 35 | 1102/0.2 | 8.36 | 2.00 | 12.5 | 0.552 |
| 50 | 1577/0.2 | 9.98 | 2.20 | 14.5 | 0.39 |
| 70 | 2205/0.2 | 12.60 | 2.40 | 17.5 | 0.276 |
| 95 | 2997/0.2 | 14.78 | 2.60 | 20.2 | 0.204 |
