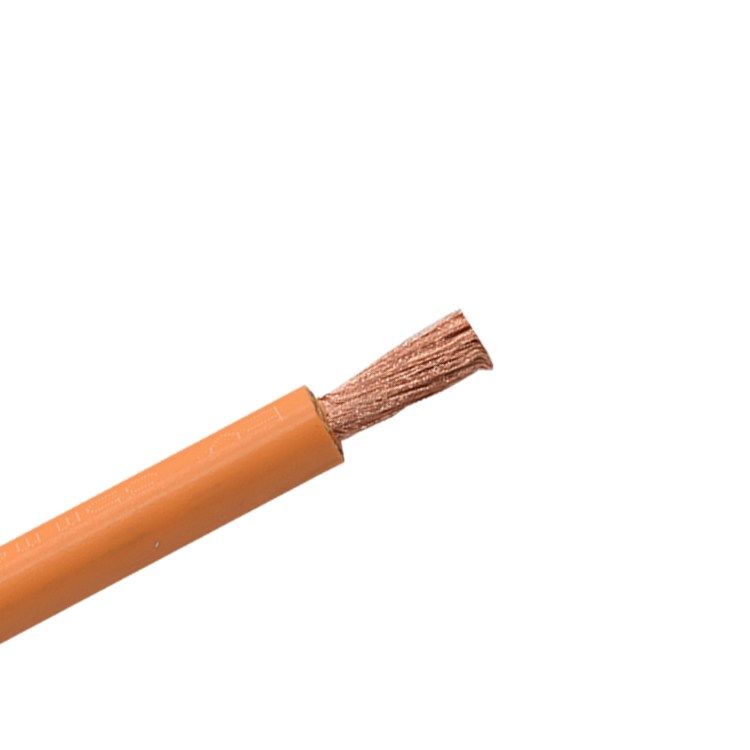

DC1500V TUV Certified ES-H15Z-F / ES-RYJ-125 125℃ Single layer Energy Storage Cable
- Cable Type : ES-H15Z-F / ES-RYJ-125
- Standard : CQC1143；PPP58049A
- Rated Voltage : DC1500V
- Ambient Temperature: -40°C ~ +125°C
- Conductor：Bare or Tinned Copper Stranded
- Insulation ： XLPE
- RoHS & Reach : Approval
- Certificate : TUV
Description
DC1500V TUV Certified ES-H15Z-F / ES-RYJ-125 125℃ Single layer Energy Storage Cable
• TÜV SUD and CQC certification
• Low smoke halogen free flame retardant heat resistant 125℃ cross-linked polyolefin insulation/jacket ; The product has the advantages of softness, cold resistance, heat resistance, high flame retardant, UV resistance, long service life and so on.
• Passed single vertical flame test (IEC60332-1); Applied to energy storage system,battery-to-battery connection, battery-inverter connection, BMS connection, etc.
| Model | Conductor | Insulation | Max Resistance (Ω/km,20℃,DC) |
|||
| mm² | No./mm | Nom.Dia. (mm) |
Nom.Thick. (mm) |
Nom.Dia. (mm) |
||
| ES-H15Z-F(TUV) ES-RYJ-125(CQC) |
4 | 56/0.30 | 2.59 | 0.8 | 4.25 | 5.09 |
| 6 | 84/0.30 | 3.17 | 0.8 | 4.85 | 3.39 | |
| 10 | 78/0.40 | 4.08 | 1 | 5.9 | 1.95 | |
| 16 | 126/0.40 | 5.59 | 1.1 | 7.9 | 1.24 | |
| 25 | 196/0.40 | 6.95 | 1.3 | 9.7 | 0.795 | |
| 35 | 276/0.40 | 8.3 | 1.3 | 11 | 0.565 | |
| 50 | 396/0.40 | 9.9 | 1.5 | 13 | 0.393 | |
| 70 | 553/0.40 | 11.7 | 1.5 | 14.8 | 0.277 | |
| 95 | 760/0.40 | 13.87 | 1.5 | 17 | 0.21 | |
| 120 | 950/0.40 | 15.5 | 1.5 | 18.6 | 0.164 | |
| 150 | 1178/0.40 | 17.26 | 1.7 | 20.9 | 0.132 | |
| 185 | 1463/0.40 | 19.24 | 1.9 | 23.2 | 0.108 | |
| 240 | 1911/0.40 | 23.4 | 1.2 | 27.6 | 0.0817 | |
