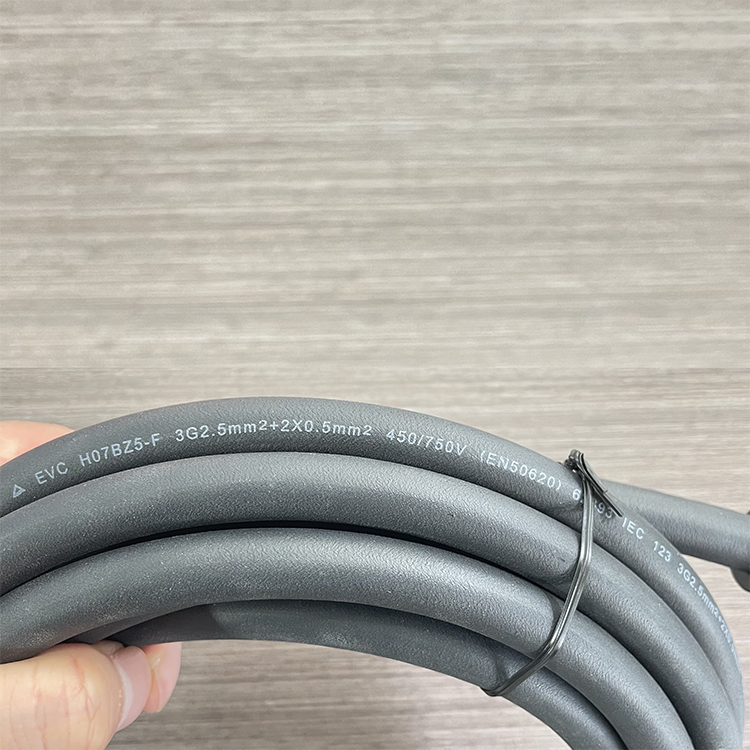

H07BZ5-F 3G2.5mm²+2*0.5mm² 450/750V TUV Certified AC EV Charging Cable
- Cable Type : H07BZ5-F
- Cross section : 3G2.5+2*0.5mm²
- Standard : EN50620:2017;IEC62893-3:2017
- Rated Voltage : 450/750V
- Ambient Temperature: 90°C
- Conductor：Bare or Tinned Copper Stranded
- Insulation ： Rubber
- Jacket: TPU
- RoHS & Reach : Approval
- Certificate : TUV
Description
H07BZ5-F 3G2.5mm²+2*0.5mm² 450/750V TUV Certified AC EV Charging Cable
• Standard : EN50620:2017;IEC62893-3:2017
• It is used to connect charging between the car and the charging pile, AC Charging gun.
• Excellent heat resistance, aging resistance, thermal overload resistance, low temperature resistance, liquid resistance, oil resistance, damp heat resistance, UV resistance, ozone resistance, etc.
| Model | Applicable flexible cord | Certificate |
| H05BZ5-F ; 62893 IEC 121 | 3G1.5mm²~2.5mm²+n*0.5mm²~1.0mm² （n=0~8） | TUV |
| H05BZ6-F ; 62893 IEC 122 | 3G1.5mm²~2.5mm²+n*0.5mm²~1.0mm²（n=0~8） | |
| H07BZ5-F ; 62893 IEC 123 | 3G1.5mm²+n*0.5mm²~1.0mm²（n=0~8） | |
| 3~5G2.5mm²~35mm²+n*0.5mm²~1.0mm²（n=0~8） | ||
| H07BZ6-F ; 62893 IEC 124 | 3G1.5mm²+n*0.5mm²~1.0mm²（n=0~8） | |
| 3~5G2.5mm²~16mm²+n*0.5mm²~1.0mm²（n=0~8） |
