TC-ER

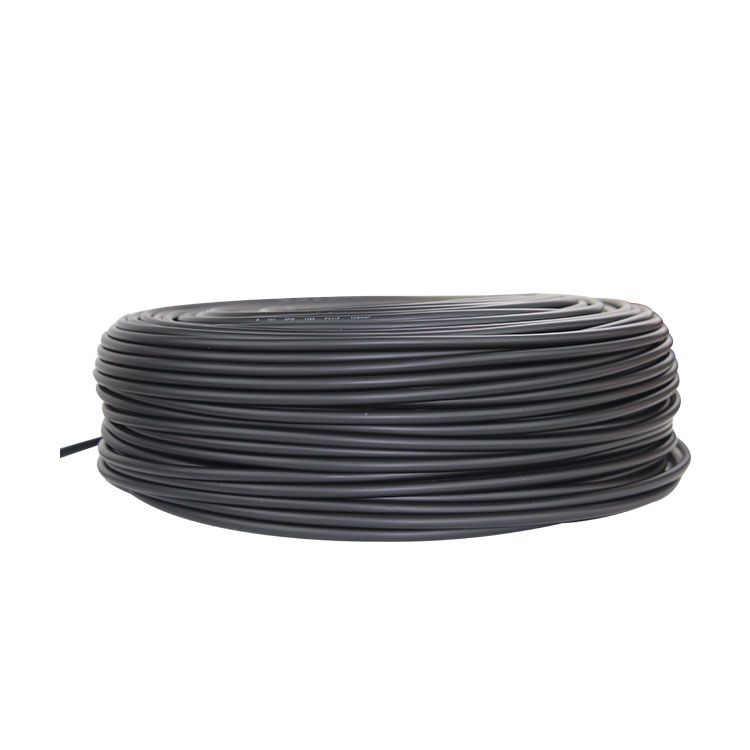

UL1277 Cable

UL 1277 Standard TC-ER Cable for Use on AC-applications in Renewable Energy-Systems

  • Cable Type : TC , TC-ER , CIC
  • Standard : UL1277；CSA C22.2 NO. 239
  • Conductor：Bare or Tinned Copper Stranded
  • Insulation ： XLPE
  • Jacket : XLPE
  • Rated Voltage: AC 600V
  • Rated Temperature : ~40℃~90℃
  • RoHS & Reach : Approval
  • Certificate : UL , CUL
Categories: , Brand:

Description

UL 1277 Standard TC-ER Cable for Use on AC-applications in Renewable Energy-Systems

•  Standard : UL 1277 ; CSA C22.2 NO. 239

•  UL Certified electrical power and control tray cable : TC and TC-ER

•  CUL certified electrical power and control tray cable : CIC

• Low-smoke halogen-free radiation cross-linked polyolefin insulation, halogen-free, phosphorus-free ,Heat-resistant, cold-resistant, wear-resistant, UV-resistant, ozone-resistant, hydrolysis-resistant, termite-resistant

• This type of cable is suitable for power, lighting, control and signal circuits,and can also be used in outdoor places supported by slings, and can also be used in wind turbines and photovoltaic systems, photovoltaic inverters etc.

Conductor Insulation Jacket
AWG Core Construction
(No./mm)		 Nom.Dia.
(mm)		 Nom.Thick.  (mm) Nom.Dia.
(mm)		 Nom.Thick.
(mm)		 Nom.Dia.
(mm)
18 2 16/0.254 1.16 0.76 2.8 1.14 8.00
3 8.50
16 2 26/0.254 1.49 0.76 3.1 1.14 8.60
3 9.20
14 2 41/0.254 1.87 0.76 3.5 1.14 9.40
3 10.00
12 2 65/0.254 2.36 0.76 3.9 1.14 10.20
3 10.90
10 2 105/0.254 3.09 0.76 4.7 1.14 11.90
3 12.60
8 2 168/0.254 4.00 1.14 6.4 1.52 16.10
3 17.10
6 2 266/0.254 4.93 1.14 7.3 1.52 18.00
3 19.20
4 2 420/0.254 6.30 1.14 8.8 1.52 21.00
3 2.03 23.40
2 2 665/0.254 7.82 1.14 10.3 2.03 25.00
3 26.70
1 2 836/0.254 8.85 1.4 11.9 2.03 28.20
3 30.50
1/0 2 1045/0.254 9.9 1.4 13 2.03 30.50
3 32.50
2/0 2 1330/0.254 11.30 1.4 14.3 2.03 33.00
3 35.50
