UL ETL Certified US Type NEMA 5-15P Plug Type B Power Cord with SJT SJTW SVT cord
- Male Plug Type : Type B ; NEMA 5-15P
- Female end Type : Stripped or Customized
- Rated Current & Voltage : 10A 12A 13A 15A / 125V
- Rated Temperature: 60℃~105℃
- Conductor：Stranded pure bare copper
- Insulation ： PVC or Rubber
- Jacket : PVC or Rubber
- RoHS & Reach : Approval
- Certificate : UL CUL ETL
Description
UL ETL Certified US Type NEMA 5-15P Plug Type B Power Cord with SJT SJTW SVT cord
• Used in: North and Central America, Japan
• NEMA* standards are used in the US, Canada and Mexico. Comparable flat blade plugs are used in Japan, various Caribbean islands, parts of South America and some Southeast Asian countries

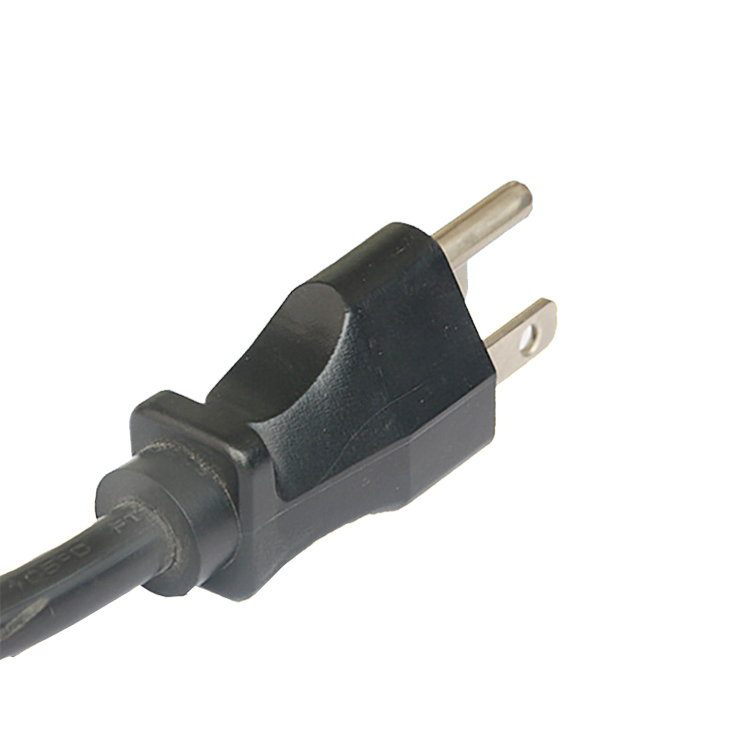

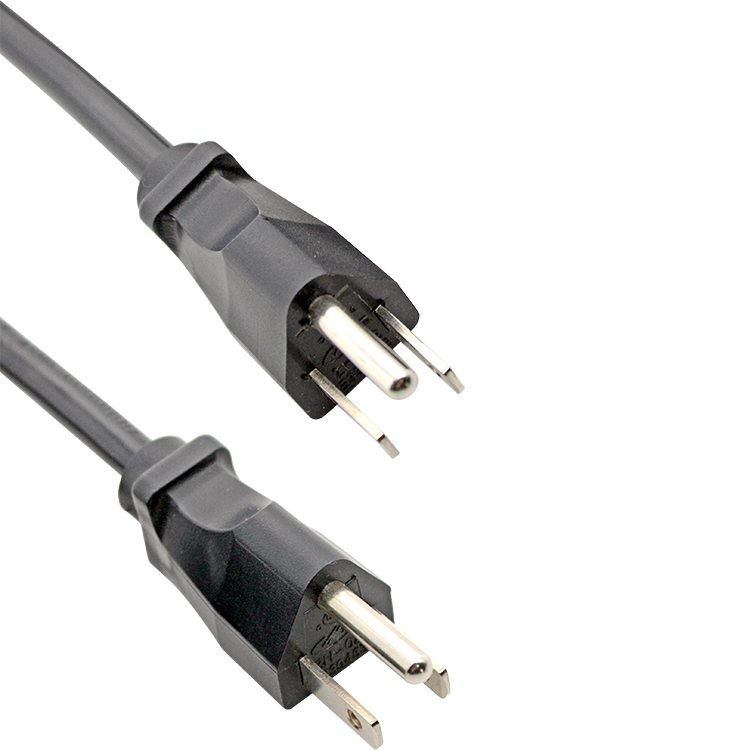

• The Type B electrical plug has two flat parallel pins and a round grounding (or earth) pin. The earth pin is longer than the other two so that the device is grounded before the power is connected. As with the type A plugs, the American and Japanese versions vary slightly.
• Certificate : UL,CUL,ETL
| Plug Type | Standard | Applicable Flexible Cord | Certificate | |
| Plug type B NEMA 5-15P |
UL 817 CSA C22.2 No. 21-14 |
18AWG/3C 10A 125V |
SPT-2, SPT-2W, SPT-3, HPN, SVT, SVTO, SVTOO, SV, SVO, SJT, SJTW, SJTO,SJTOW, SJTOO, SJTOOW, SJ, SJO, ST, STW, STO, STOO | UL CUL ETL |
| 17AWG/3C 12A 125V |
SVT, SVTO, SVTOO, SV, SVO, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SJ,SJO | |||
| 16AWG/3C 13A 125V |
SPT-2, SPT-2W, SPT-3,SVT, SVTO, SVTOO, SV, SVO, SJT, SJTW, SJTO,SJTOW, SJTOO, SJTOOW,SJ, SJO, ST, STW, STO, STOO | |||
| 16AWG/3C 15A 125V |
HPN | |||
| 14AWG/3C 15A 125V |
SPT-3, HPN, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SJ, SJO, ST, STW,STO, STOO |
|||
