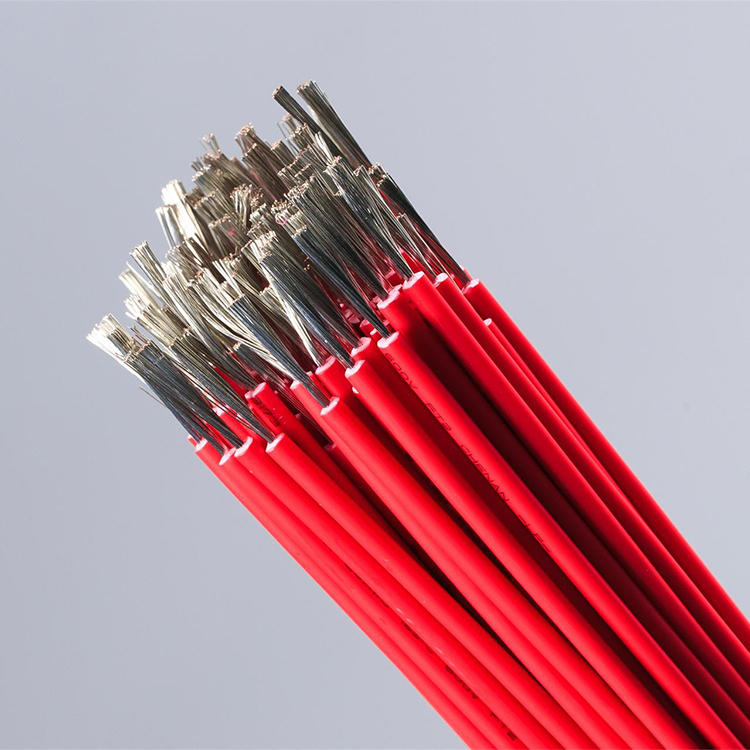

UL3135 AC600V 200℃ FT2 Flame Test 10 AWG 14 AWG 18 AWG Silicone Wire

Description

UL3135 AC600V 200℃ FT2 Flame Test 10 AWG 14 AWG 18 AWG Silicone Wire

• UL certificate, Compliant with UL758 Standard

• Rating : 200 deg C, 600 Vac, Horizontal flame

• Conductor : 26 AWG – 12 AWG, solid or stranded.

• Insulation : Extruded SR, 30 mils minimum average thickness, 27 mils minimum thickness at any point.

• Use : Internal wiring of appliances where totally enclosed.

Applications

High‑Temperature Silicone Hook‑up Wire Applications
UL 3135 is a UL‑recognized silicone‑insulated hook‑up / lead wire, rated up to 200 °C and 600 V AC (nominal), with stranded (or solid) copper conductors and silicone rubber insulation

Recommended Applications

• Internal wiring of household appliances and high‑temperature equipment — e.g. ovens, microwave ovens, electric heaters, cooking appliances operating under high heat.

• Lighting equipment wiring — lighting fixtures, lamps, LED / high‑temperature lighting modules requiring heat‑resistant insulation.

• Internal wiring of industrial and electronic devices — control cabinets, switchgear, electronic modules, industrial machinery, devices operating in high‑temperature, high‑stress, or chemically aggressive environments.

• Wiring in equipment exposed to oil / chemical / high‑temperature / harsh environments — silicone insulation gives resistance to oils, acids/alkalis, high temperature, moisture, aging, making UL 3135 suitable for such demanding internal wiring.

• Flexible routing inside devices or machinery — thanks to silicone’s softness and flexibility and high temperature rating, UL 3135 is good for compact spaces, tight bends, vibration‑prone or heat‑producing equipment.

Limitations

• Intended for internal wiring / fixed wiring inside appliances, equipment, or machinery — not designed for outdoor, buried, or direct exposure to environment.

• As with other hook‑up wires, not ideally suited for applications requiring heavy external mechanical stress, drag‑chain flexing, or continuous high‑flex dynamic movement.

• For safe use at maximum performance, installation should consider ventilation or airflow (especially at elevated temperatures) to avoid degradation of silicone properties under prolonged heat.
