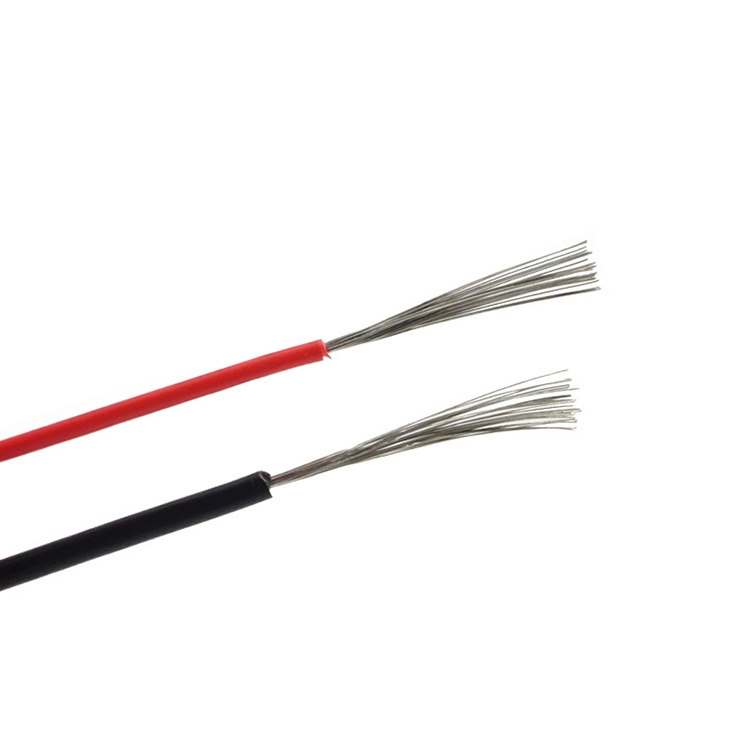

UL3266 AC300V 125℃ FT2 Flame Test XLPE Insulation 22 AWG Hookup Wire

  • Cable Type :  UL3266
  • Standard : UL758
  • Rated Voltage : AC300V
  • Rated Temperature:  125℃
  • Flame Test : FT2,FT1,VW-1
  • Conductor：Bare or Tinned Copper Stranded
  • Insulation ： XLPE
  • RoHS & Reach : Approval
  • Certificate : UL,CUL
Categories: , , Brand:

Description

UL3266 AC300V 125℃ FT2 Flame Test XLPE Insulation 22 AWG Hookup Wire

• UL certificate, Compliant with UL758 Standard

• Rating : 125 deg C, 300 Vac, Horizontal flame.

• Conductor : 32 AWG – 10 AWG, solid or stranded.

• Insulation : Extruded XLPE, 15 mils min average, 13 mils minimum at any point.

• Use : Internal Wiring. Tags may indicate the following: 600 Volts Peak – For Electronic Use Only.

Applications

UL3266 is an AWM/UL-recognized hook-up and lead wire, rated 125 °C and 300 V AC, with stranded or solid copper conductors and XLPE insulation. It is intended for fixed internal wiring where high-temperature resistance, mechanical durability, and flame resistance are required.

Recommended Applications

  • Internal wiring of household appliances such as refrigerators, ovens, air conditioners, washing machines, and heating devices

  • Motor lead wires for fans, pumps, compressors, and other electric motors

  • Wiring inside transformers, power supplies, and electronic modules

  • Internal wiring of control panels, switchgear, and automation equipment

  • Internal wiring for lighting equipment, ballasts, and lighting fixtures

  • Appliance and electronic device internal connections where high-temperature and standard-voltage performance is required

Limitations

  • Not suitable for high-voltage mains wiring above 300 V

  • Not suitable for outdoor, PV, energy storage, or EV high-voltage circuits

  • Not suitable for dynamic flexing, cable carriers, or robotic high-flex applications

  • Designed only for fixed internal wiring under its rated conditions

Conductor Insulation Max Resistance
(Ω/km, 20°C, DC)
AWG No./mm Dia.mm) Thick.(mm) Dia.(mm)
30 7/0.10 0.3 0.38 1.15 381
28 7/0.127 0.38 0.38 1.2 239
26 7/0.16 0.48 0.38 1.3 148.94
24 11/0.16 0.61 0.38 1.43 93.25
22 17/0.16 0.76 0.38 1.58 55
20 26/0.16 0.94 0.38 1.76 34.6
18 41/0.16 1.18 0.38 2 21.8
16 26/0.254 1.49 0.38 2.32 14.64
14 41/0.254 1.88 0.38 2.7 9.25
12 65/0.254 2.36 0.38 3.2 5.82
10 105/0.254 3 0.38 4 3.66
