UL3512
Silicone Wire

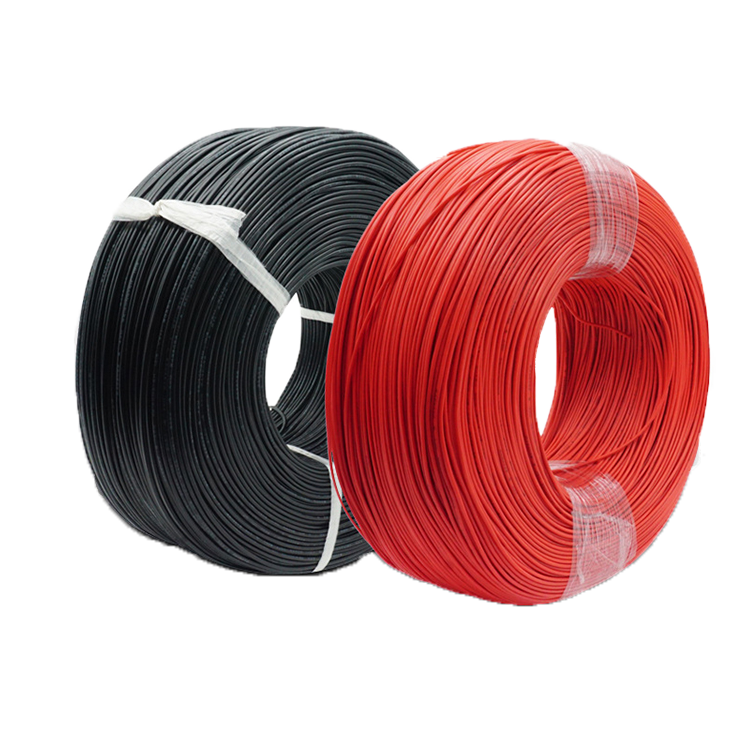

UL3512 AC600V 200℃ FT2 Flame Test 2.5 mm² silicone wire

  • Cable Type :  UL3512
  • Standard : UL758
  • Rated Voltage : AC600V
  • Rated Temperature:  200℃
  • Flame Test : FT2,FT1,VW-1
  • Conductor：Bare or Tinned Copper Stranded
  • Insulation ： Silicone Rubber
  • RoHS & Reach : Approval
  • Certificate : UL,CUL
Categories: , , Brand:

Description

UL3512 AC600V 200℃ FT2 Flame Test 2.5 mm² silicone wire

• UL certificate, Compliant with UL758 Standard

• Rating : 200 deg C, 600 Vac, Horizontal Flame.

• Conductor : 0.3 – 250 sq mm, solid or stranded. If tinned copper strands are used, they shall be 0.0152 in diameter or larger.

• Separator : Optional

• Insulation : Extruded SR,

• Use : Internal wiring of appliances where totally enclosed.

Conductor size Minimum average thickness Minimum thickness at any point
0.3-4.0 sq mm 30 mils 27 mils
4.1-9.0 sq mm 45 mils 40 mils
9.1-35.0 sq mm 60 mils 54 mils
35.1-100.0 sq mm 80 mils 76 mils
100.1-250.0 sq mm 95  mils 85 mils
Maybe applied in two layers with an intermediate glass braid (optional)



Conductor Insulation Max Resistance
(Ω/km, 20°C, DC)
Cross Section No./mm Dia.mm) Thick.(mm) Dia.(mm)
0.5mm² 16/0.2 0.92 0.76 2.55 40.1
0.75mm² 24/0.2 1.13 0.76 2.75 26.7
1mm² 32/0.2 1.3 0.76 2.9 20
1.5mm² 30/0.25 1.57 0.76 3.2 13.7
2.5mm² 49/0.25 2.02 0.76 3.65 8.21
4mm² 56/0.3 2.59 0.76 4.2 5.09
6mm² 84/0.3 3.17 1.14 5.5 3.39
10mm² 140/0.3 4.23 1.53 7.4 1.95
16mm² 224/0.3 5.34 1.53 8.5 1.24
25mm² 350/0.3 6.69 1.53 9.9 0.795
35mm² 490/0.3 7.92 1.53 11.2 0.565
50mm² 720/0.3 9.6 2.03 13.9 0.393
70mm² 999/0.3 11.53 2.03 16 0.277
95mm² 1332/0.3 13.34 2.03 17.8 0.21
120mm² 1665/0.3 15 2.41 20.2 0.164
150mm² 2109/0.3 16.9 2.41 22.1 0.132
185mm² 2590/0.3 18.72 2.41 24 0.108
240mm² 3330/0.3 21.24 2.41 26.6 0.081
