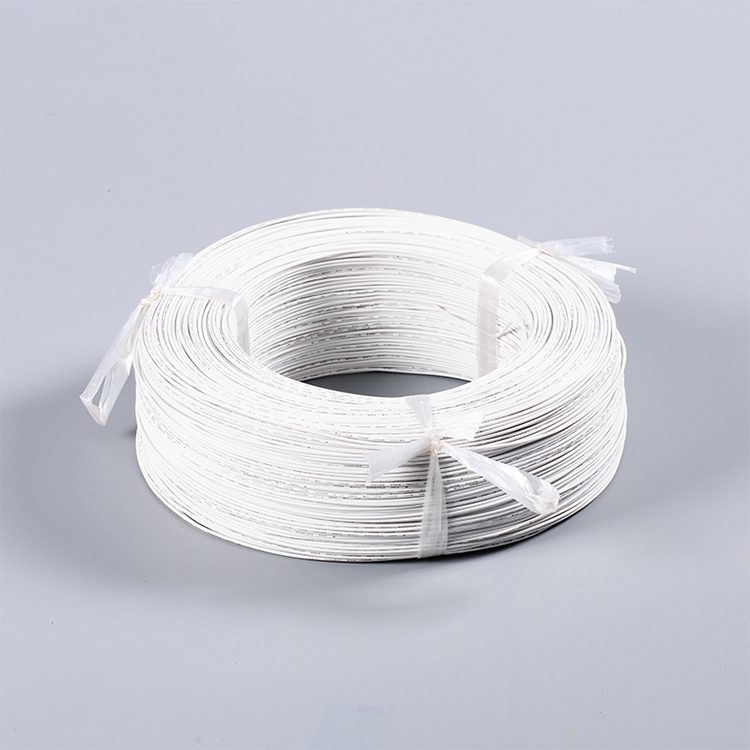

UL3907 AC1100V 200℃ FT2 Flame Test 12 Gauge Silicone Wire
- Cable Type : UL3907
- Standard : UL758
- Rated Voltage : AC1100V
- Rated Temperature: 200℃
- Flame Test : FT2,FT1,VW-1
- Conductor：Bare or Tinned Copper Stranded
- Insulation ： Silicone Rubber
- RoHS & Reach : Approval
- Certificate : UL,CUL
Description
UL3907 AC1100V 200℃ FT2 Flame Test 12 Gauge Silicone Wire
• UL certificate, Compliant with UL758 Standard
• Rating : 200 deg C, 1100 Vac, Horizontal Flame
• Conductor : 16 AWG – 600 kcmil (1.31 mm^2 – 304 mm^2), Solid or Stranded, Metal-Coated
• Insulation : Extruded SR – Silicone
• Covering : Synthetic Polyester Yarn with Silicone or Acrylic Coating or Glass Braid with Silicone or Acrylic Coating
• Use : Internal wiring
| AWG Size | Conductor Size (mm^2) |
Minimum average thickness | Minimum thickness at any point |
| 16 AWG-1 AWG | 1.31 – 42.40 | 50 mils | 45 mils |
| 1/0 AWG- 250 kcmil | 53.40 – 127 | 60 mils | 55 mils |
| 251 – 600 kcmil | 152 – 304 | 88 mils | 80 mils |
| Conductor | Insulation | Max Resistance (Ω/km, 20°C, DC) |
|||
| AWG | No./mm | Dia.mm) | Thick.(mm) | Dia.(mm) | |
| 16 | 26/0.254 | 1.49 | 1.27 | 4.2 | 13.7 |
| 14 | 41/0.254 | 1.87 | 1.27 | 4.6 | 8.61 |
| 12 | 65/0.254 | 2.36 | 1.27 | 5.1 | 5.53 |
| 10 | 105/0.254 | 3.09 | 1.27 | 5.8 | 3.48 |
| 8 | 168/0.254 | 4 | 1.27 | 6.7 | 2.18 |
| 6 | 266/0.254 | 5 | 1.27 | 7.7 | 1.39 |
| 4 | 420/0.254 | 6.4 | 1.27 | 9.2 | 0.865 |
| 2 | 665/0.254 | 8 | 1.27 | 10.8 | 0.549 |
| 1 | 836/0.254 | 8.95 | 1.27 | 11.8 | 0.436 |
| 1/0 | 1045/0.254 | 10.02 | 1.53 | 13.5 | 0.345 |
| 2/0 | 1330/0.254 | 11.3 | 1.53 | 14.8 | 0.276 |
| 3/0 | 1672/0.254 | 12.7 | 1.53 | 16.4 | 0.219 |
| 4/0 | 2109/0.254 | 14.3 | 1.53 | 17.8 | 0.173 |
