XHHW

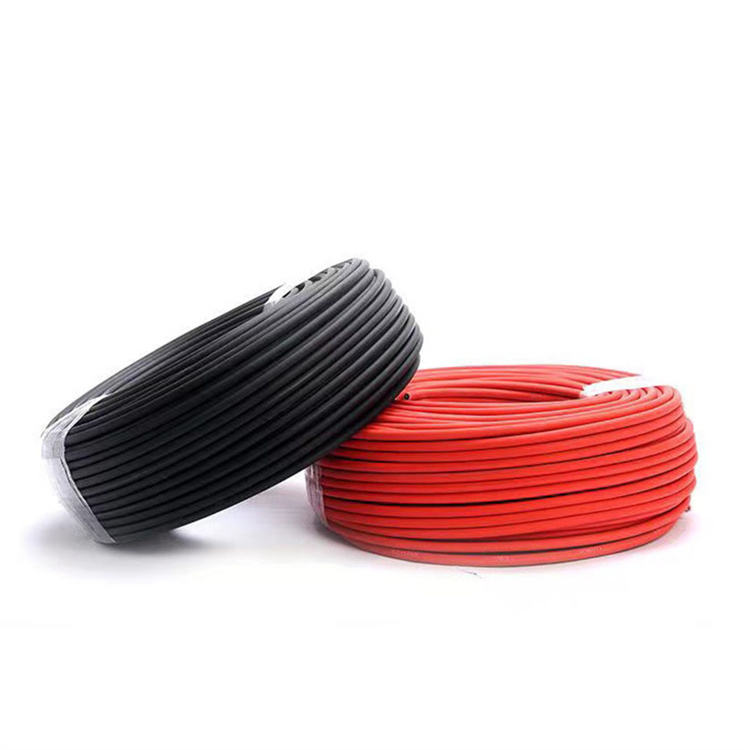

XHHW Wire

UL44 Standard XHHW XHH XHHW-2 600V 90℃ Single Core Thermoset Insulated Wire and Cable XHHW Wire

  • Cable Type : XHHW XHH XHHW-2
  • Standard : UL44
  • Conductor：Bare or Tinned Copper, Stranded or Solid
  • Insulation ： XLPE
  • Rated Voltage: AC 600V
  • Rated Temperature : ~40℃~90℃
  • RoHS & Reach : Approval
  • Certificate : UL
Categories: , Brand:

Description

UL44 Standard XHHW XHH XHHW-2 600V 90℃ Single Core Thermoset Insulated Wire and Cable XHHW Wire

•  Standard : UL44

•  UL44 Standard Thermoset-Insulated Wires and Cables : XHH XHHW XHHW-2 (600V) ; RHH RHW RHW-2 (600V or 2000V)

•  CSA C22.2 No. 38-18 Standard  Thermoset-Insulated Wires and Cables : R90 RW75 RW90 (600V or 2000V)

•  Type XHH XHHW XHHW-2 is suitable for various commercial and industrial applications.These cables may be installed in wet or dry locations , indoors or outdoors ,in raceways ,underground ducts.They are permitted for 600V application

•  XHH is rated at a conductor temperature of 90℃ dry
•  XHHW is rated at a conductor temperature of 75℃ wet and 90℃ dry
•  XHHW-2 is rated at a conductor temperature of 90℃ wet or dry

Conductor Insulation
AWG No./mm Nom.Dia. (mm) Nom.Thick. (mm) Nom.Dia. (mm)
18 16/0.254 1.164 0.76 2.8
16 26/0.254 1.488 0.76 3.1
14 41/0.254 1.872 0.76 3.5
12 65/0.254 2.36 0.76 4
10 105/0.254 3.09 0.76 4.7
8 168/0.254 4 1.14 6.4
6 266/0.254 4.93 1.14 7.3
4 420/0.254 6.3 1.14 8.8
2 665/0.254 7.82 1.14 10.3
1 836/0.254 8.85 1.4 12
1/0 1045/0.254 9.9 1.4 13
2/0 1330/0.254 11.3 1.4 14.3
3/0 1672/0.254 12.6 1.4 16
4/0 2109/0.254 14.3 1.4 17.4
