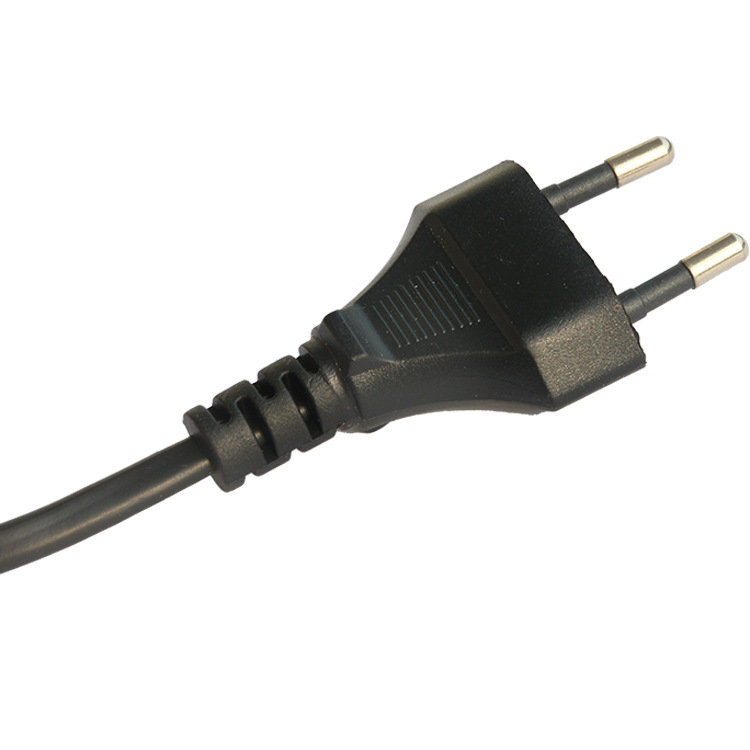

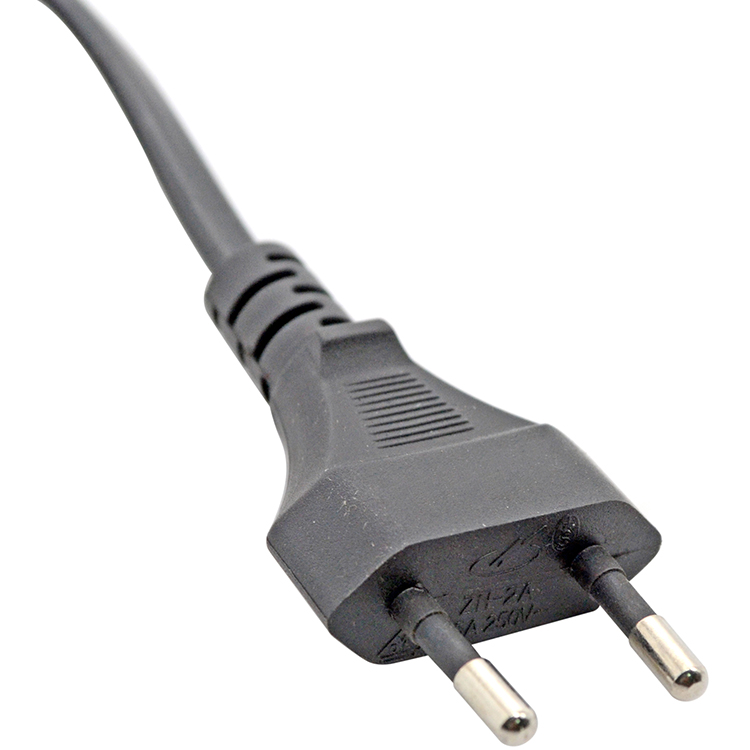

2.5A 250V VDE Certified CEE7/16 Europlug power cord match to PVC H03VV-F H05VV-F H03VVH2-F H05VVH2-F Cable
- Male Plug Type : Type C
- Female end Type : Stripped or Customized
- Rated Current & Voltage : 2.5A 250V
- Rated Temperature: 70℃
- Conductor：Stranded pure bare copper
- Insulation ： PVC
- Jacket : PVC
- RoHS & Reach : Approval
- Certificate : VDE
Description
2.5A 250V VDE Certified CEE7/16 Europlug power cord match to PVC H03VV-F H05VV-F H03VVH2-F H05VVH2-F Cable
• Used in: Europe, with the exception of the UK, Ireland, Cyprus and Malta
• The Type C electrical plug (or Europlug) is a two-wire plug that has two round pins. It fits into any socket that accepts 4.0 – 4.8 mm round contacts on 19 mm centres. They are being replaced by E, F, J, K or N sockets which work perfectly with Type C plugs.Type C plugs are generally limited for use in appliances that require 2.5 amps or less.
• Europlugs are compatible with the following types of sockets: CEE 7/3 (Schuko), CEE 7/5 (French), SN 441011 (Swiss), CEI 23-50 (Italian), DS 107-2D1 (Danish), SI 32 (Israeli) and IEC 60906-1 and other outlets that accept plugs with two round pins, 19 mm apart.
• Certificate : VDE
| Plug Type | Standard | Applicable Flexible Cord | Certificate | |
| Plug type C 2.5A 250V |
EN 50075:1990 DIN VDE 0620 |
H03VVH2-F 2 x 0.5-0.75 mm² H05VVH2-F 2 x 0.75 -1.0 mm² H03VV-F 2 x 0.5-0.75 mm² H05VV-F 2 x 0.75-1.0 mm² |
VDE | |
