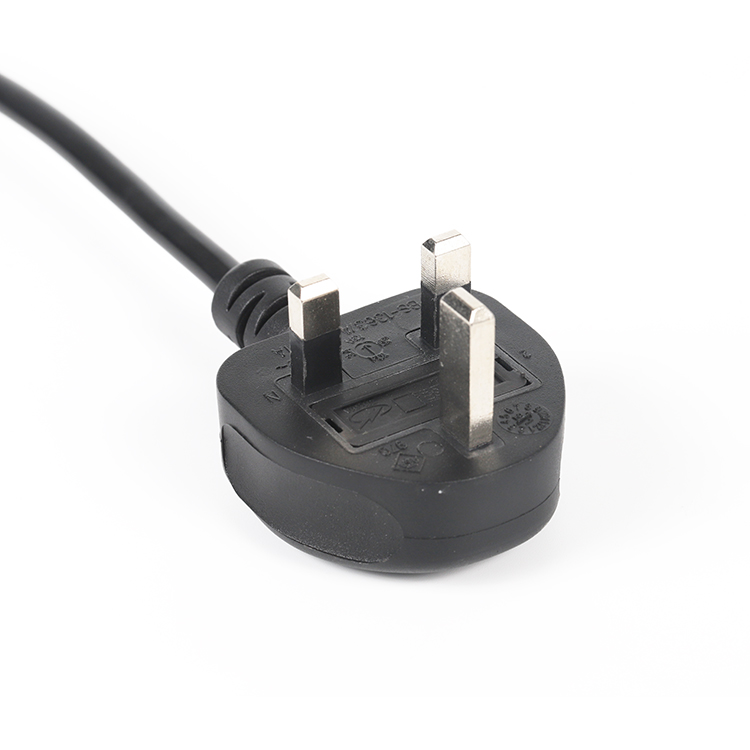

What is Type G plug?
Used in: UK, Ireland, Cyprus, Malta, Malaysia, Singapore, Hong Kong
The Type G plug, commonly known as the British standard plug, is widely used in the United Kingdom, Ireland, Cyprus, Malta, Malaysia, Singapore, and Hong Kong. It is also the standard connector used for most UK power cord assemblies, especially those designed to meet BS 1363 requirements.
The Type G electrical plug features three rectangular blades arranged in a triangular pattern and incorporates a built-in fuse to protect the connected appliance and its flexible cable. Typically, a 3-amp fuse is used for smaller electronic devices such as computers or lamps, while a 13-amp fuse is used for higher-power appliances like heaters or kitchen equipment.
The two outer pins of the Type G plug and socket have a width of 0.16 in (4 mm), a height of 0.25 in (6.35 mm), and a length of 0.7 in (17.7 mm). These pins are positioned 0.87 in (22.2 mm) apart. The earth pin is centrally located and spaced 0.87 in (22.2 mm) vertically above the line and neutral pins. It measures 0.31 in (7.93 mm) in width, 0.16 in (4 mm) in height, and 0.89 in (22.73 mm) in length, ensuring proper grounding and correct plug orientation.
Another important safety feature of the Type G socket system is the shutter mechanism built into British outlets. These shutters prevent foreign objects from being inserted into the live and neutral contacts, significantly improving electrical safety.
Because of its fused design, grounding configuration, and strict BS 1363 safety requirements, the Type G plug and UK power cord system is widely regarded as one of the safest electrical connection standards used worldwide.
