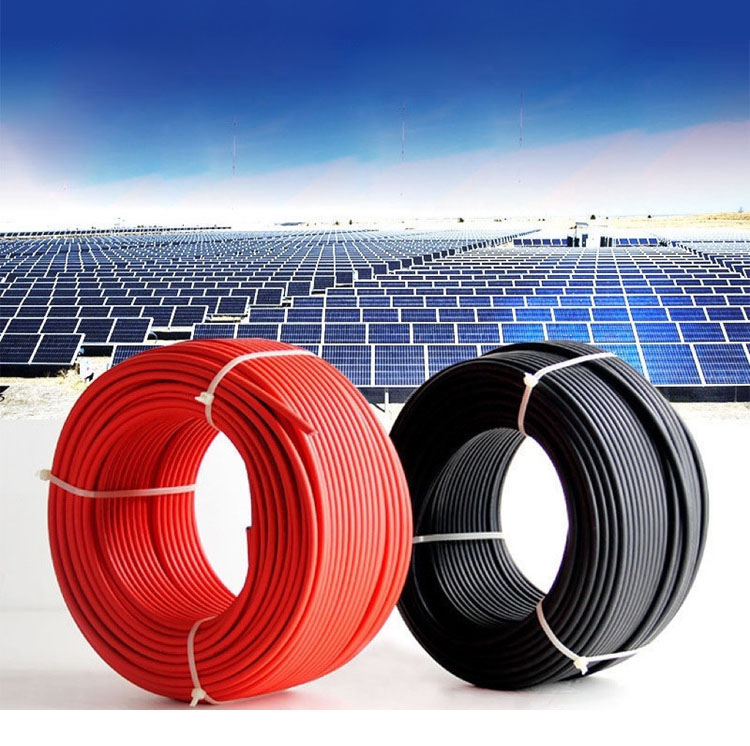

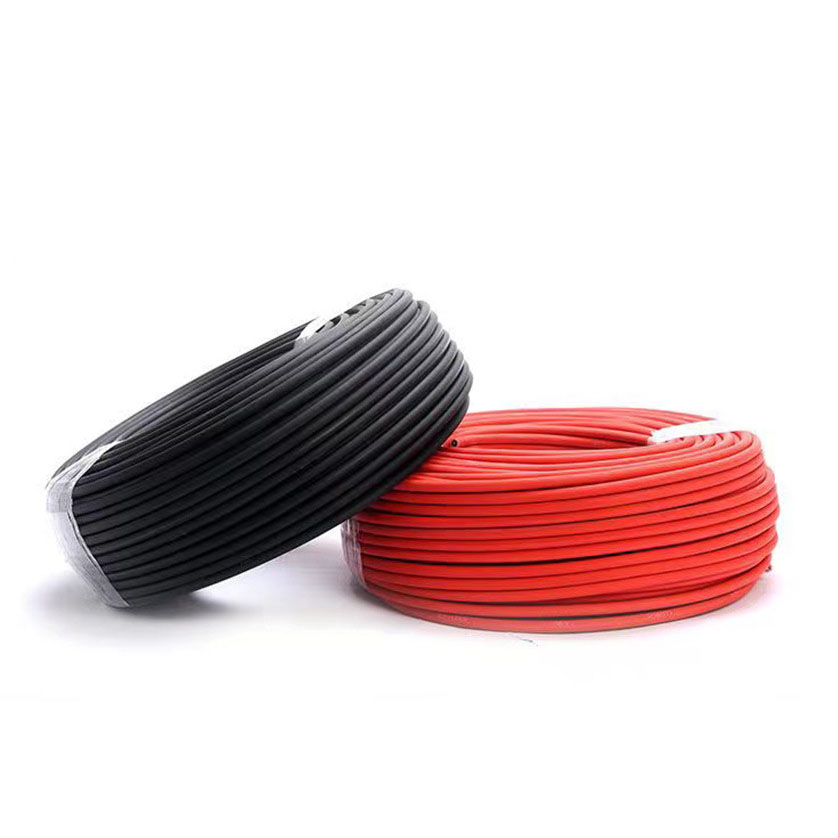

TUV Approved 0.6/1kv Photovoltaic Solar Cable PV1-F
- Cable Type : PV1-F
- Standard : 2 PfG 1169/08.07
- Rated Voltage : DC1kV ；AC Uo/U 0,6/1kV
- Ambient Temperature: -40°C ~ +90°C
- Max. Temperature at conductor: 120℃
- Conductor：Tinned Copper Stranded
- Insulation ： XLPE
- Jacket : XLPE
- RoHS & Reach : Approval
- Certificate : TUV
Description
TUV Approved 1000V Max 1800V PV1-F Solar Cable
• TÜV Certified PV1-F Solar Cable , 2 PfG 1169/08.07
• Tinned Copper Conductor
• Low-smoke halogen-free radiation cross-linked polyolefin insulation, halogen-free, phosphorus-free
•Heat-resistant, cold-resistant, wear-resistant, UV-resistant, ozone-resistant, hydrolysis-resistant, termite-resistant
• Maximum Permitted Voltage: DC 1,8kV (conductor-conductor,non earthed system,circuit not under load)
• Ambient Temperature: -40°C to +90°C
• Max.Temperature at Conductor : 120°C
| Model | Conductor | Nominal Overall Diameter (mm) |
Nominal Weight (kg/km) |
Current Carrying Capacity in Air (Amps) |
|
| mm² | Nom.Dia. （mm） |
||||
| PV1-F | 2.5 | 2 | 4.5 | 8.21 | 41 |
| 4 | 2.6 | 5.2 | 5.09 | 55 | |
| 6 | 3.2 | 5.9 | 3.39 | 70 | |
| 10 | 4.5 | 6.9 | 1.95 | 98 | |
| 16 | 5.6 | 8.3 | 1.24 | 132 | |
| 25 | 6.8 | 9.7 | 0.795 | 176 | |
| 35 | 8.2 | 11 | 0.565 | 218 | |
| 50 | 9.8 | 13.2 | 0.363 | 276 | |
| 70 | 11.8 | 15.4 | 0.277 | 347 | |
