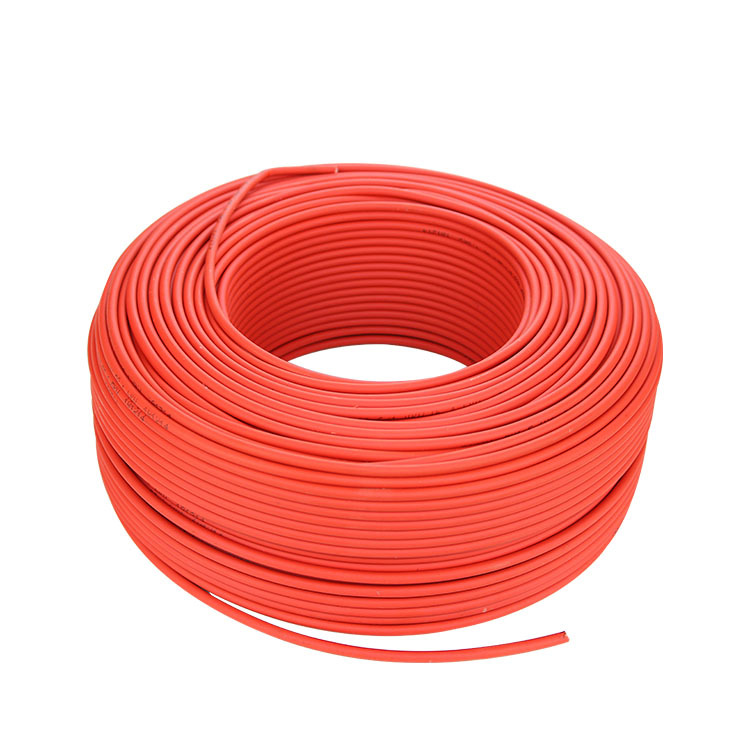

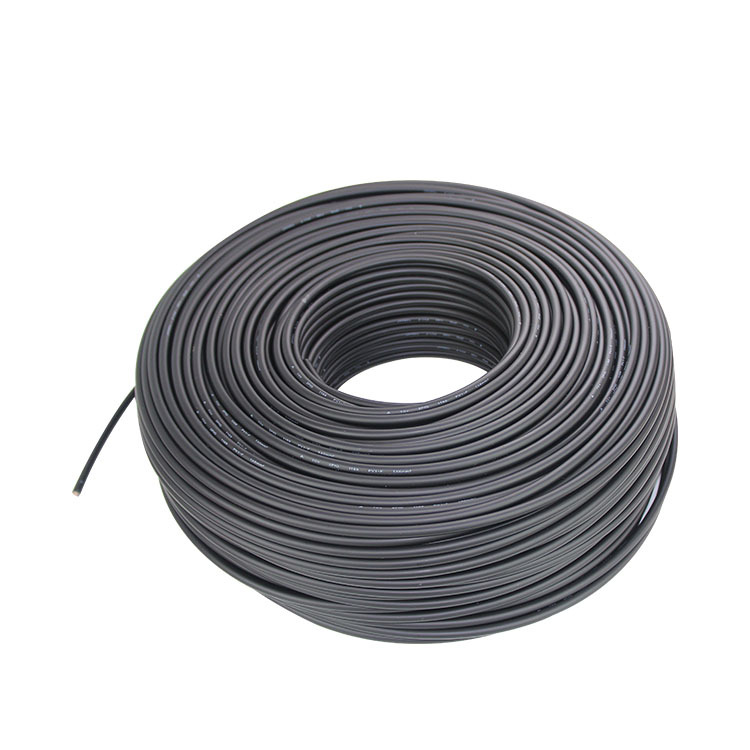

UL4703 Standard 600V 1000V 2000V 10AWG 12AWG 14AWG Solar Cable
- Standard : UL4703
- Rated Voltage : AC600V;AC1000V;AC2000V(Optional)
- Ambient Temperature: -40°C ~ +90°C
- Max. Temperature at conductor: 120℃
- Conductor：Tinned Copper Stranded
- Insulation ： XLPE
- Jacket : XLPE
- RoHS & Reach : Approval
- Certificate : UL;CUL
Description
UL4703 Standard 600V 1000V 2000V 10AWG 12AWG 14AWG Solar Cable
• UL Certified UL 4703 18AWG~4/0AWG
• Tinned Copper Conductor
• Low-smoke halogen-free radiation cross-linked polyolefin insulation, halogen-free, phosphorus-free
•Heat-resistant, cold-resistant, wear-resistant, UV-resistant, ozone-resistant, hydrolysis-resistant, termite-resistant
| Model | AWG | mm² | Conductor | 600V O.D.(mm) |
1000V&2000V O.D.(mm) |
Max Resistance (Ω/km,20℃,DC) |
| UL4703 | 18 | 0.823 | 16/0.254 | 4.25 | 5.00 | 23.2 |
| 16 | 1.31 | 26/0.254 | 4.55 | 5.30 | 14.6 | |
| 14 | 2.08 | 41/0.254 | 4.95 | 5.70 | 8.96 | |
| 12 | 3.31 | 65/0.254 | 5.40 | 6.20 | 5.64 | |
| 10 | 5.261 | 105/0.254 | 6.20 | 6.90 | 3.546 | |
| 8 | 8.367 | 168/0.254 | 7.90 | 8.40 | 2.23 | |
| 6 | 13.3 | 266/0.254 | 9.80 | 10.30 | 1.403 | |
| 4 | 21.15 | 420/0.254 | 11.70 | 11.70 | 0.882 | |
| 2 | 33.62 | 665/0.254 | 13.30 | 13.40 | 0.5548 | |
| 1 | 42.41 | 836/0.254 | 15.20 | 16.10 | 0.4398 | |
| 1/0 | 53.49 | 1045/0.254 | 17.00 | 17.10 | 0.3487 | |
| 2/0 | 67.43 | 1330/0.254 | 18.30 | 18.80 | 0.2766 | |
| 3/0 | 85.01 | 1672/0.254 | 19.80 | 20.40 | 0.2194 | |
| 4/0 | 107.2 | 2109/0.254 | 21.50 | 22.10 | 0.1722 |
